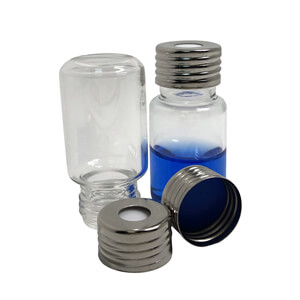

GC Vials ND18 headspace 20ml (Screw Vials)

  • No risk of incorrectly sealed vials as is the case with crimping

  • More convenient to close and open, especially as magnetic crimp caps are very hard to crimp

  • Lower coring and protection for the needle due to thinner septa

  • Universal use for Headspace and SPME due to thinner septa

  • Special pre-cut septa (silicone layer is slitted but PTFE remains intact) for safe penetration of the sensitive SPME phase with hardly any coring

  • Tested and approved by CTC for their Combi PAL (Gerstel, Atas, Agilent), also recommended by Agilent for their G1888A samplers, by Shimadzu for AOC5000 and for PerkinElmer TurboMatrix autosamplers (models after 1/9/2006).

  • Delivery information: Kits include 20 ml clear glass precision screw neck headspace vial (22,5×75,5 mm), magnetic screw cap silver with 8 mm central hole and septum.

Share with:

Products Features+

CTC Vials

ND18 Screw Neck Vials




 Part No.  VA101  VA201  VA205
 Description  10ml clear precision screw- thread vial, round bottom 22.5*46mm USP 1 expansion 33  20ml clear precision screw- thread vial, round bottom 22.5*75.5mm USP 1 expansion 33  20ml amber precision screw- thread vial, round bottom 22.5*75.5mm USP 1

Magnetic Universal Screw Seals ND18 for Precision Thread Vials      100pcs/pack

SA001

blue PTFE/white Silicone septa  Φ 17.5*1.5mm

SACA001

blue PTFE/white Silicone septa, 18mm magnetic screw cap, 8mm centre hole

VA101

10ml clear precision screw- thread vial, round bottom                  22.5*46mm

VA201

20ml clear precision screw- thread vial, round bottom                  22.5*75.5mm

VA205

20ml amber precision screw- thread vial, round bottom                22.5*75.5mm


Why cooperate with us?


1, ISO certificated company system keeps all the process under control ;

2, 10 years OEM experience promise all the orders can be handled very well ;

3, 1 year warranty for the products we supplied, guarantee the stable quality ;

4, All the products are CE certificated ,also SGS test report if need ;

5, 24*365 hours sales &technical service will solve the issue in 2 hours ;

6, 5million stock guarantee 24hours delivery time for all the regular orders ;

7, More than 2000kinds of lab consumables offering you with the best price;

8, Free samples for your test under our cost anytime;

9, No MOQ for users or dealers,different package meets your requirements .

Technical Information+

Vial Finish Specifications

  • Andard Screw Thread Finish
  • "T" = Outer diameter of the thread
  • "E" = Inside diameter of the thread
  • "ID" = Inside diameter
  • "S" = Start of thread
  • "H" = Distance from top of finish to shoulder for closure clearance
  • Andard Screw Thread Finish
  • "T" = Outer diameter of the thread
  • "E" = Inside diameter of the thread
  • "ID" = Inside diameter
  • "S" = Start of thread
  • "H" = Distance from top of finish to shoulder for closure clearance

Screw Thread Finishes

  • GPI refers to the "Glass Packaging Institute"

  • The GPI is responsible for establishing and issuing standards for the types and finishes produced by American glass manufacturers.

  • GPI refers to the "Glass Packaging Institute"

  • The GPI is responsible for establishing and issuing standards for the types and finishes produced by American glass manufacturers.

    Typical GPI finishes found in the chromatography field are as follows:

  • GPI refers to the "Glass Packaging Institute"

  • The GPI is responsible for establishing and issuing standards for the types and finishes produced by American glass manufacturers.

  • GPI refers to the "Glass Packaging Institute"

  • The GPI is responsible for establishing and issuing standards for the types and finishes produced by American glass manufacturers.

Glass Technical Information

  • Borosilicate - A glass that is high in silicate and having at least 5% boron oxide.

  • Linear Coefficient of Expansion - Fractional change in length of glass per degree change in temperature.

  • Strain Point - Maximum temperature to which glass should be heated during use"

    Types of Glass:

  • USP Type - Pharmaceutical glass containers can be classified as USP Type I, II, III or NP.

  • Type I - Borosilicate glass represents the least reactive glass.

  • Type I glass has the least pH shift. (Lowest leaching characteristics) Coefficient of Expansion = 33 or 51 for Clear and 51 for Amber

  • Type II - is de-alkalized soda lime glass with higher levels of sodium hydroxide and calcium oxide.

  • Type III - soda lime glass - cannot be autoclaved.

  • Type NP - general purpose soda-lime glass used where chemical durability and heat shock are not factors.

  • Coefficient of Expansion = 92.

GLASS PROPERTIES

Color

Clear

Amber

Linear Coefficient of Expansion

33

51

Strain Point (Degrees Celsius)

515

535

USP Class Type

Type 1

Type 1

Light Protection

No

Yes

Plastic Properties

Type of Plastic Type of Plastic Type of Plastic Type of Plastic Type of Plastic Type of Plastic
Maximum use temperature, C/F 80°C/176°F 80°C/176°F 80°C/176°F 80°C/176°F 80°C/176°F
Maximum use temperature, C/F 80°C/176°F 80°C/176°F 80°C/176°F 80°C/176°F 80°C/176°F
Maximum use temperature, C/F 80°C/176°F 80°C/176°F 80°C/176°F 80°C/176°F 80°C/176°F
Maximum use temperature, C/F 80°C/176°F 80°C/176°F 80°C/176°F 80°C/176°F 80°C/176°F
Maximum use temperature, C/F 80°C/176°F 80°C/176°F 80°C/176°F 80°C/176°F 80°C/176°F
Note: Chart is general guideline only.
PP* = Some radiation resistant polypropylene resins available.
**Flexibility - Depends on thickness.


Process Flow Diagram+

  • STEP 01

    The workers clean the tubing with cloth

  • STEP 02

    The workers plug the tubing into machine for making vials

  • STEP 03

    The vials are transferred to QC for Physical Test

  • STEP 04

    The workers put the tested vials into one big package (500-800pcs/pack)

  • STEP 05

    The workers get the vials from big package and put the vials into one special tray.

  • STEP 06

    Put the tray with vials into the Water injection machine

  • STEP 07

    The vials in tray will be transferred to next step for Ultrasonic oscillations.

  • STEP 08

    The vials in tray will be transferred to Jilt water machine.

  • STEP 09

    The vials in tray will be transferred to Infrared drying case.

  • STEP 10

    The workers will collect the vials after vials are dry.

  • STEP 07

    The vials in tray will be transferred to next step for Ultrasonic oscillations.

  • STEP 11

    The workers will check all the vials inclouding the bottom neck ,bottom ,inerts.

  • STEP 12

    The workers will pack 100pieces vials into one package.

  • STEP 13
